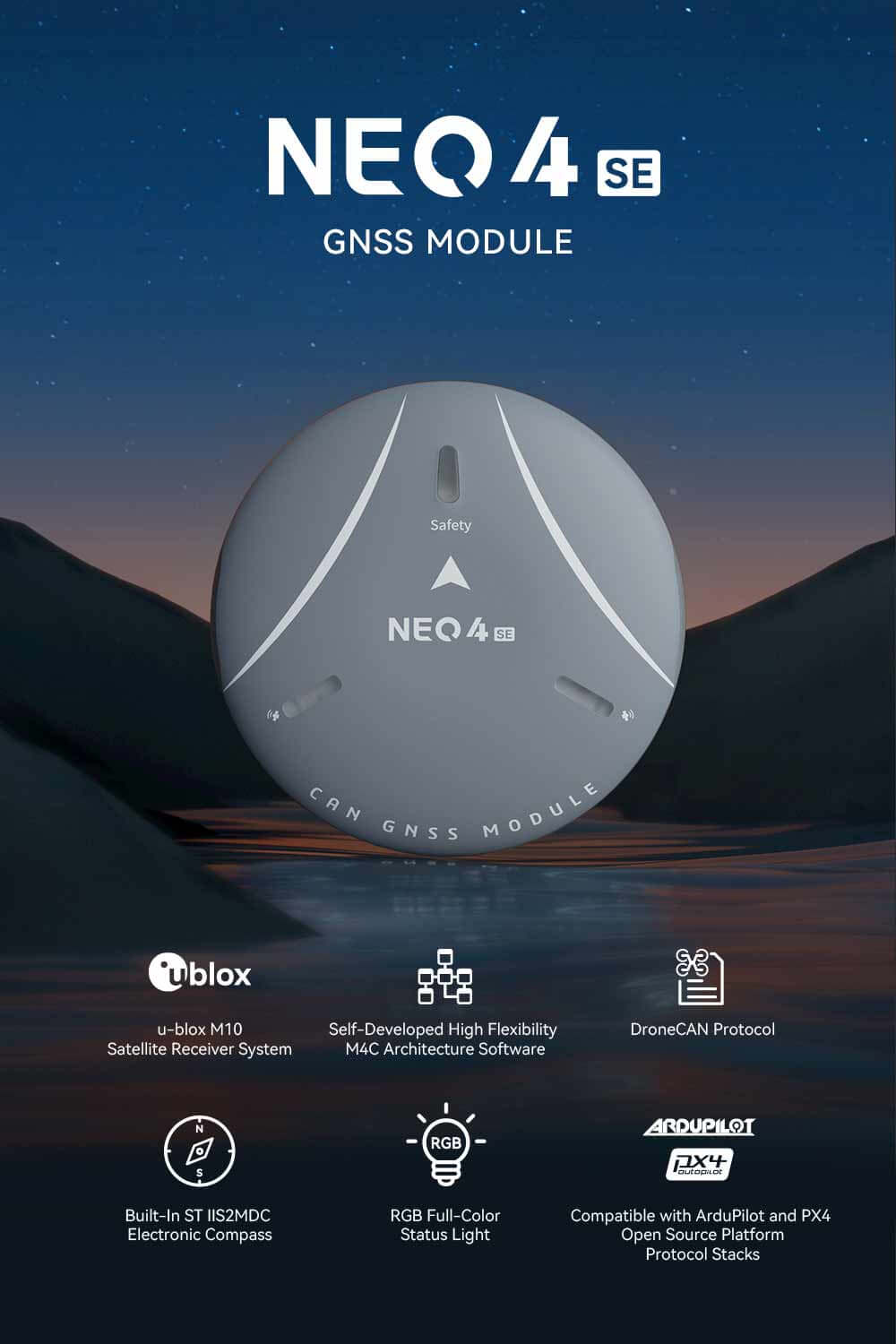

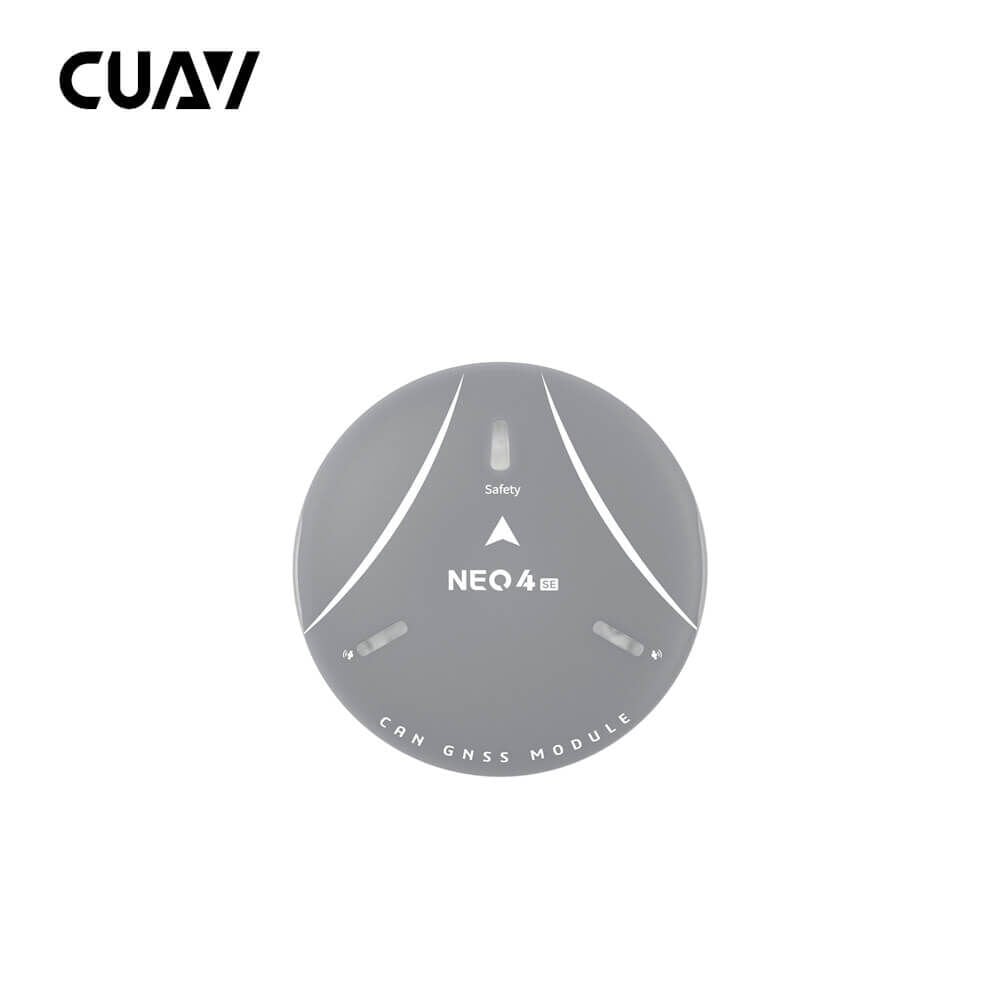

CUAV NEO 4 SE GPS Module U-BLOX M10 GNSS
6.300,00 ₺
NEO 4 SE GPS Module Features:

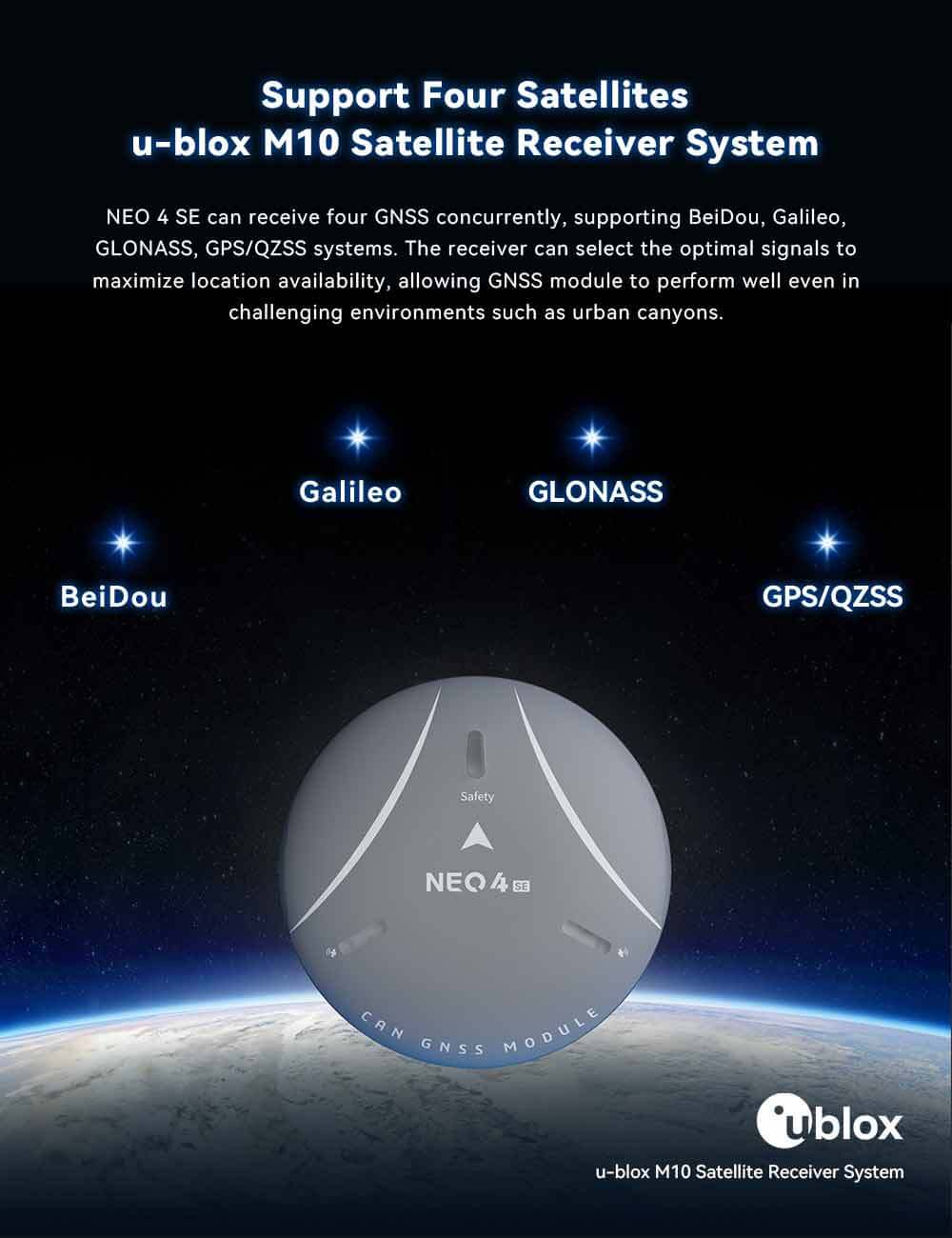

1– Support Four Satellites u-blox M10 Satellite Receiver System

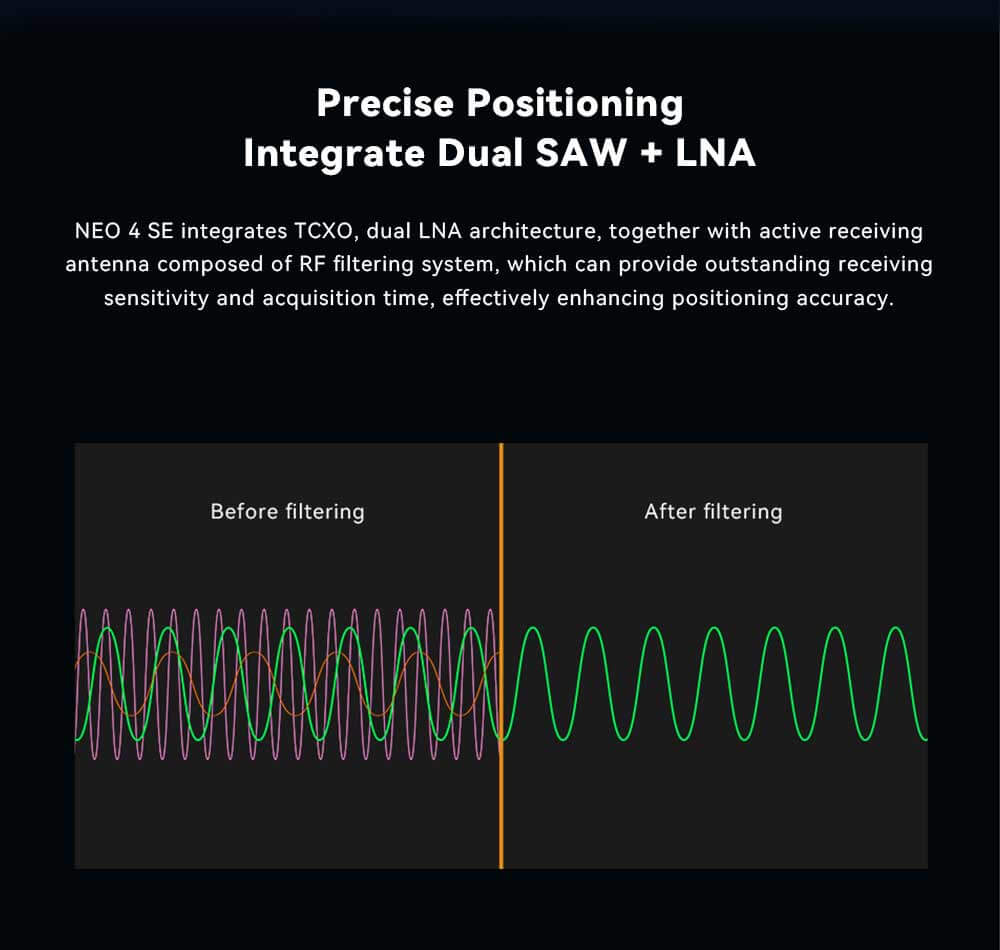

2– Precise Positioning Integrate Dual SAW + LNA

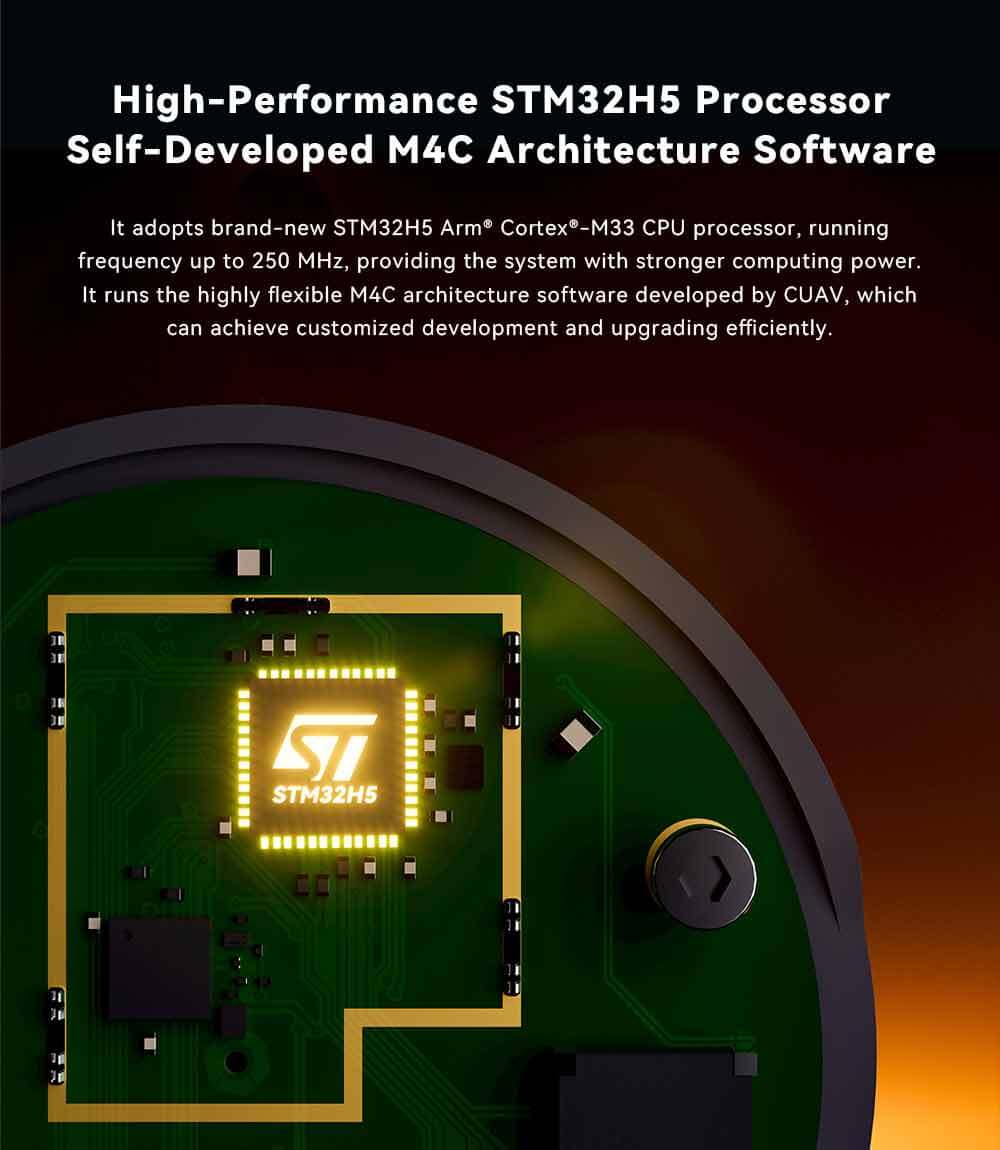

3– High-Performance STM32H5 Processor Self-Developed M4C Architecture Software

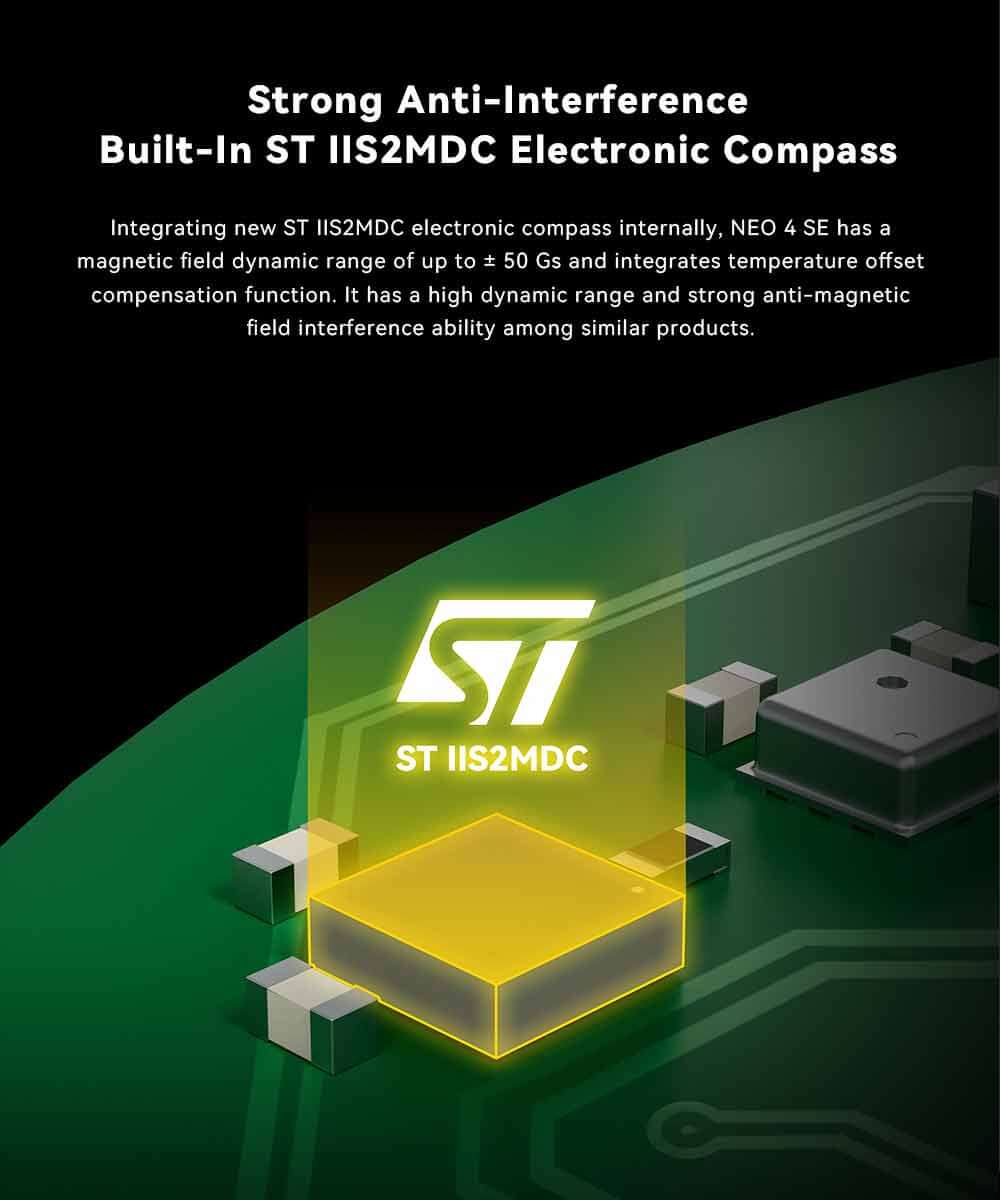

4– Strong Anti-lnterference Built-In ST llS2MDc Electronic Compass
5– Adopt DroneCAN Protocol Compatible with Mainstream Open Source Platform

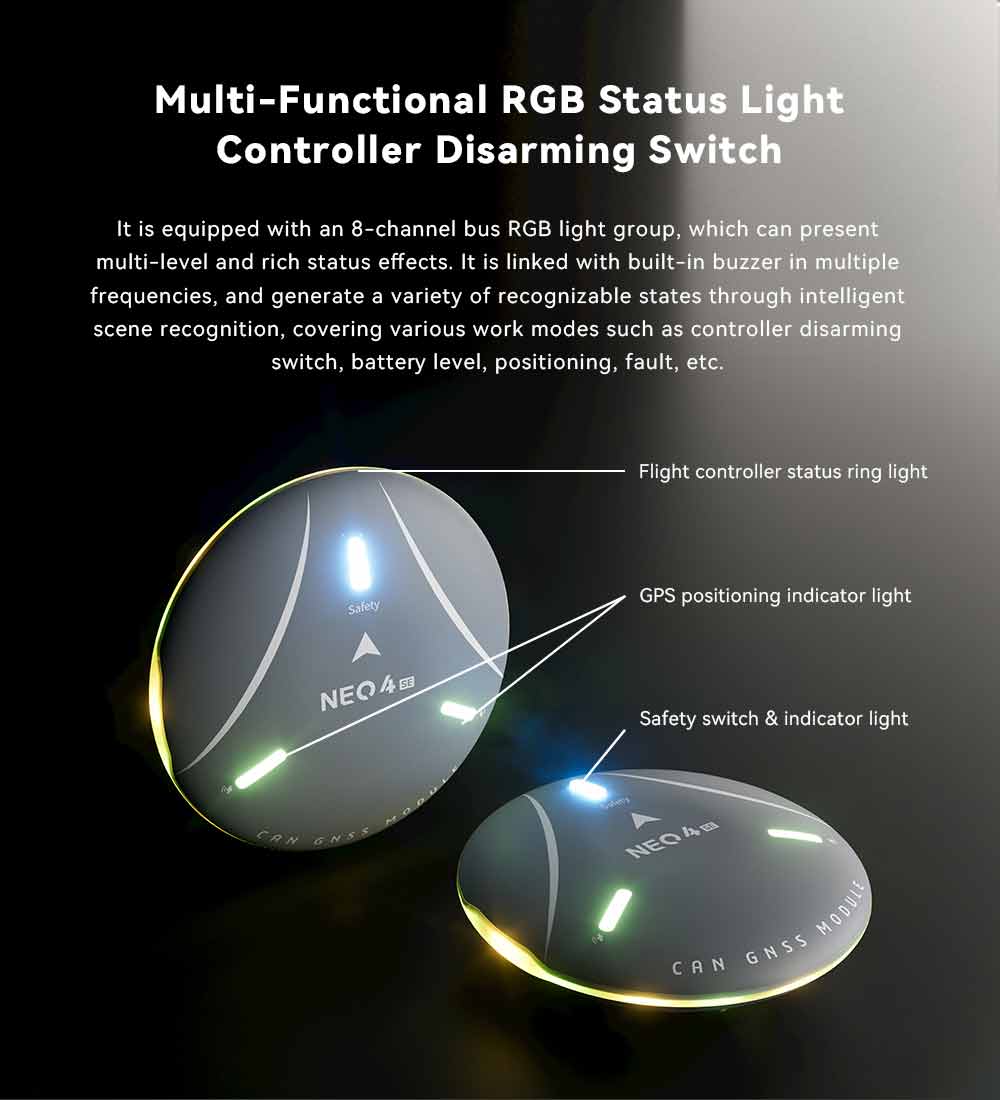

6– Multi-Functional RGB Status Light Controller Disarming Switch

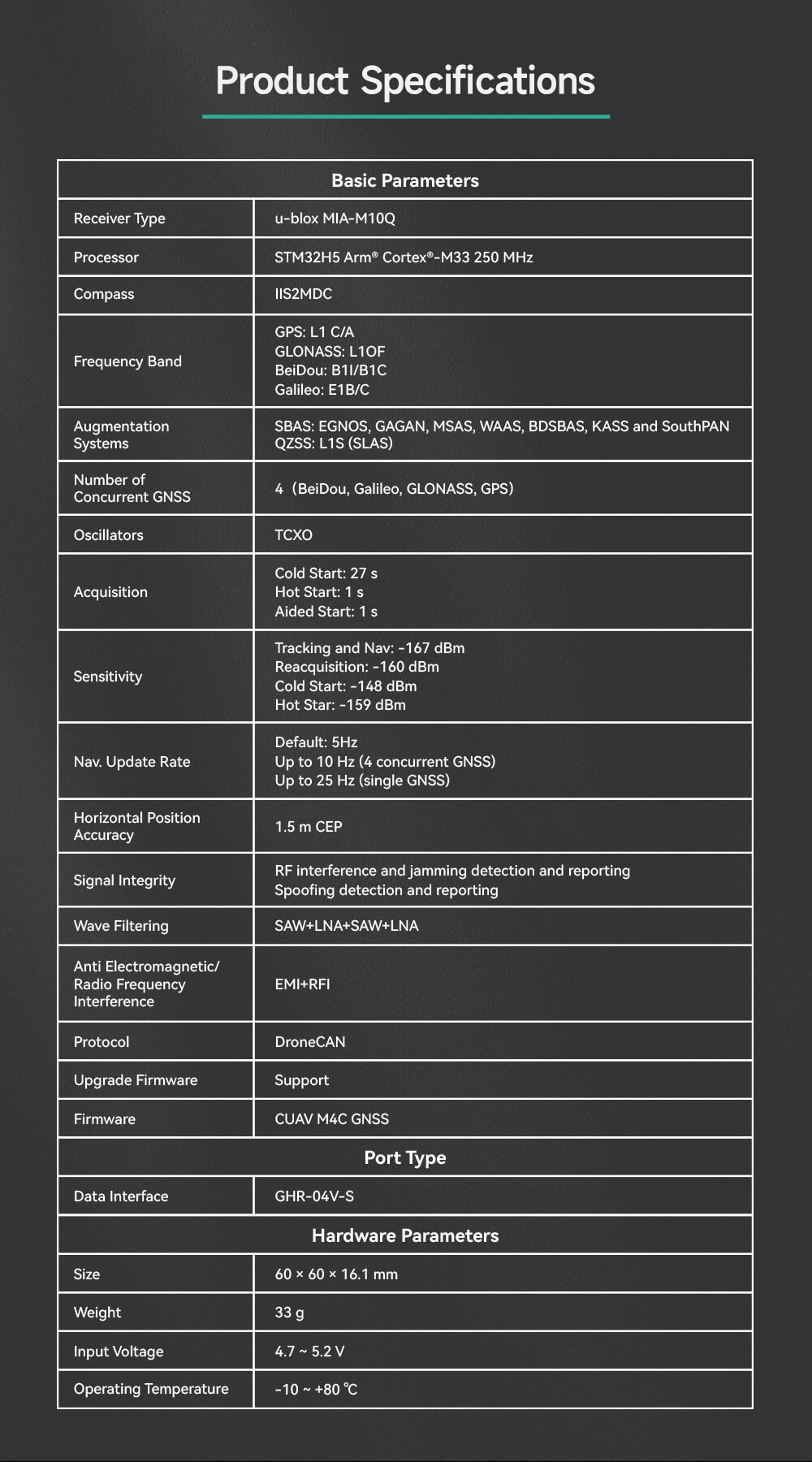

Secification |
|
| Receiver Type | u-blox MIA-M10Q |
| Processor | STM32H5ArmCortex-M33250 MHz |
| Frequency Band | GPS: L1 C/A GLONASS: L10F BeiDou: B11/B1C Galileo: E1B/C QZSS: L1 C/A L1S SBAS L1 C/A: WAAS I EGNOS I MSAS I GAGAN |
| Number of Concurrent GNSS | BeiDou | Galileo | GLONASS丨GPS / QZSS |
| Oscillators | TCXO |
| Acquisition | Cold Start: 27 s I Hot Start: 1 s I Aided Start: 1 s |
| Nav. Update Rate | Up to 10 Hz (4 concurrent GNSS) I Up to 25 Hz (single GNSS) |
| Horizontal Position Accuracy | 1.5 mCEP |
| Signal lntegrity | RF interference and jamming detection and reporting , spoofing detection and reporting |
| Protocol | DroneCAN |
| Upgrade Firmware | Support |
| Firmware | CUAV M4C GNSS |
| Data Interface | JST GH 1.25 4P |

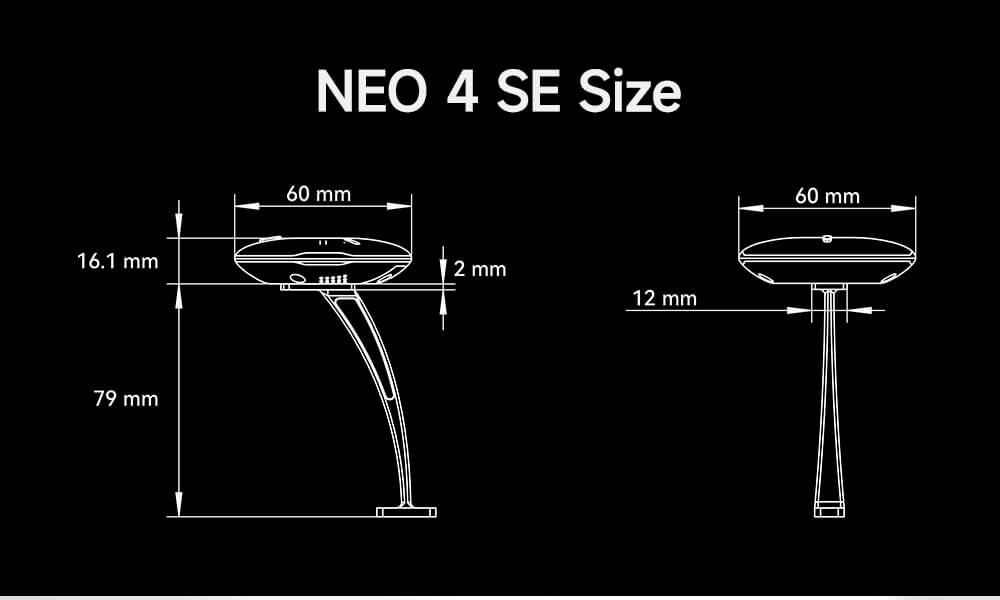

| Size | 60 × 60 x 16.1 mm |
| Weight | 33g |
| Input Voltage | 4.7 ~5.2V |
| Operating Temperature | – 10 ~ 80℃ |
